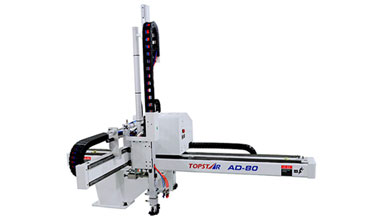

AD-80 / AD-80S
High efficiency, High Precision, Reduce Cost, High Safety
Injection mould clamping force range:100~220ton
[read more=”Read More” less=”Read Less”]
Standard function

  • Postion motion 1-99 point
  • Posture control at extract side
  • Defective product reject circuit
  • Sub-arm individual motion
  • Midway runner release(Move,Revert)
  • Product release within mold
  • Internal memory(for Max 30 molds)
  • Vacuum confirmation unit ( 1 circuit)
  • Slow speed descent at release side
  • Outside safety door area standby
  • Start signal of conveyor
  • Runner descent at release side
  • Runner extraction from moving side
  • Two language exchange(Chinese/English)

Option function

  • Air nipple circuit in gripper
  • NT gate cut
  • Additional vacuum sensing unit(2 circuits)
  • Under-cut extraction
  • Extraction from fixed side
  • Product confirmation

[/read]

Single Axis AC Servo Driven Robots are extensively applied to horizontal plastic injection machines ranging from 50 ~1800T which can take out the runners, runner and finished products from the mold of plastic injection molding machines. There are two types of arms-single stage and telescopic. The vertical strokes for single stage are 600/800 and for telescopic are 600/800/900/1000/1200mm. The arms move stably thanks to two sections of double speed structure. The traverse movement is driven by high performance AC servo motor. With different requirements of products, robot can work with various grippers and jigs to realize stable & perfect take-out products from mold by quick- descent of removal of products and slow -descent to place outside.



Mechanical Structure

High rigidity structure design, stable construction, low vibration, abiding and long service life.

Vertical and crosswise movement is driven by pneumatic cylinder. Traverse, crosswise and vertical unit adopt high precision linear guide way result in high speed and accurate position, high wear resistance, heat resistance, long service life without distortion.



High Performance Imported Ac Servomotor

Working with high precise linear guide way and imported steel wire belt driven result in high speed, low noise, precision position at ±0.1mm.



Jig Circuit

Molded parts are quickly remove from the mold and placed them carefully outside of machines. “Remove quickly and place carefully, require various jigs according to different products to realize stable and perfect motion – remove and place products safely.



Control System

Micro-computer control system was programmed & developed by TOPSTAR, write the program with more safety protection functions to provide safeguard for operator and IMM in accordance with insufficient safety protection for domestic IMM situation. In addition, we also can write the special program to meet customers’ special requirements for matching the various molds and grippers.

Palm controller incorporate, changeable Chinese/ English screen page, easy learning. Multi-functions and programs are provided for selection, automatically detecting, displaying and recording the malfunctions, conveniently maintain and problem solving.



Standard Function

Position motion 1-16 point
Products extract side posture control
Products extract crosswise posture control
Detective products reject circuit
Sub-arm action independently
Midway runner release
In-Mold releasing
Internal memory (30 sets)
Vacuum sensing unit (1 circuit)
Low speed descend at release side
Delayed traverse
Start signal of conveyor.
Sub-arm descent at release side
Sub-arm extract from moving platen
Two languages exchangeable
Extract side exchangeable from moving platen / fixed platen



Optional Function

Air ripper in chuck circuit
Additional vacuum sensing unit (2 circuits)
NT gate cutting
Undercut gate circuit
Product confirmation limit switch



Feature

  • High rigidity structure design, stable construction, low vibration, abiding and long service life.
  • Vertical and crosswise movement is driven by pneumatic cylinder. Traverse, crosswise and vertical unit adopt high precision linear guide way result in high speed and accurate position, high wear resistance, heat resistance, long service life without distortion.
  • Working with high precise linear guide way and imported steel wire belt driven result in high speed, low noise, precision position at ±0.1mm.
  • Molded parts are quickly remove from the mold and placed them carefully outside of machines. “Remove quickly and place carefully”,require various jigs according to different products to realize stable and perfect motion – remove and place products safely.
  • Micro-computer control system was programmed & developed by TOPSTAR, write the program with more safety protection functions to provide safeguard for operator and IMM in accordance with insufficient safety protection for domestic IMM situation. In addition, we also can write the special program to meet customers’ special requirements for matching the various molds and grippers.
  • Palm controller incorporate, changeable Chinese/ English screen page, easy learning. Multi-functions and programs are provided for selection, automatically detecting, displaying and recording the malfunctions, conveniently maintain and problem solving.
