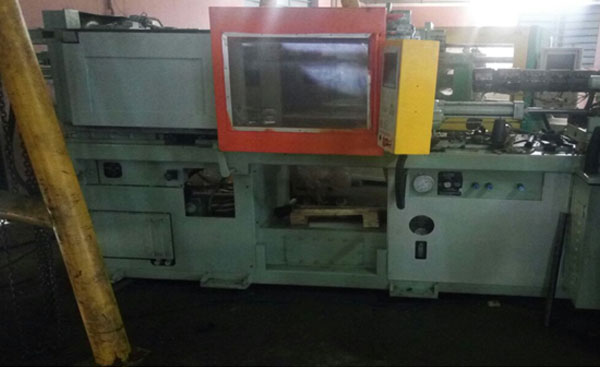

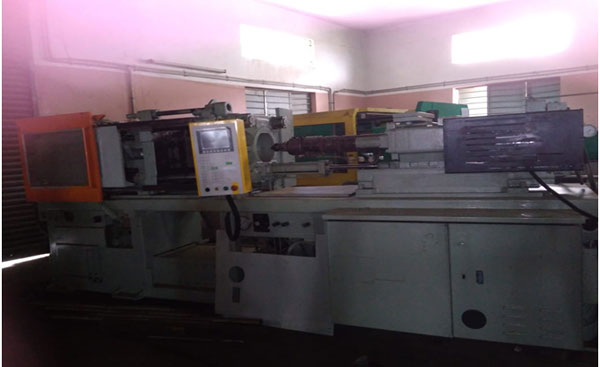

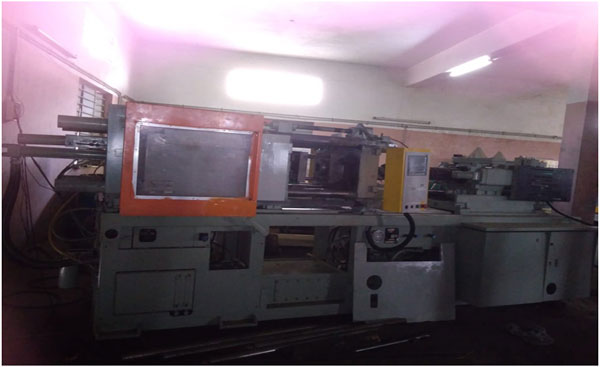

Kawaguchi 125 Ton

HomeKawaguchi 125 Ton
Machine Name Brand  Kawaguchi Model
Year 1996 125
Type Toggle
Clamp Unit Unit
Clamp force TON 125
Opening stroke mm 355
Maximum daylight mm 580
Distance between tie-bars mm 375 x 445
Platen dimensions mm 580 x 630
Ejector points 1
Ejector stroke mm 80
Injection Unit
Screw diameter mm 42
shot weight (PS) grms 200
Number of heater zones no’s 3 Zone 1 Nozzle
Screw stroke mm 300
General
Barrel heating kw 8
Pump Motor kw 18
Machine dimensions mtr 1.35 x 4.70

Core pull YES/NO No
Controller make Keba
Machine Weight TON 4/5
